Cisco Nexus vs. Catalyst: Which Cisco switch series is right for your business?

When selecting new network hardware, businesses are often faced with the question: Cisco Nexus or Catalyst? Both switch series are manufactured by Cisco, but were developed for different applications.

In this guide, you’ll learn about the key differences between Cisco Nexus and Catalyst, the benefits each series offers, and when each solution is best suited to your business.

We’ll also provide an overview of the key Cisco Nexus and Catalyst models.



Cisco Nexus vs. Catalyst: the key differences

The decision as to which Cisco switch solution is right for your business depends primarily on the requirements your corporate network must meet.

Cisco Catalyst switches were primarily developed for traditional enterprise networks. They connect workstations, Wi-Fi access points, printers and IP telephones within office buildings and campus networks.

Cisco Nexus switches, on the other hand, were specifically developed for modern data centres. There, the focus is on high bandwidth, low latency, virtualisation and automation.



CriterionCisco CatalystCisco Nexus
Typical organisation sizeSmall to large enterprise networksMedium-sized and large organisations with their own data centre
Network layerAccess, distribution and core layersSpine, leaf, aggregation and core layers in the data centre
Operating systemCisco IOS XECisco NX-OS
Optimised forEnd devices such as PCs, telephones, access points and printersServers, storage systems and virtualised workloads
FocusReliable networking of workstationsMaximum performance, low latency and scalability
Virtualisation & CloudBasic supportSpecially designed for virtualisation, cloud, VXLAN, EVPN and Cisco ACI
Power over Ethernet (PoE)Yes, available on many modelsGenerally not available
BandwidthsUp to 100 Gbit/s, depending on the modelUp to 400 Gbit/s, depending on the model



Cisco Catalyst or Nexus: Which series is right for your business?

Not every business needs a high-performance data centre. That is why the decision should always be based on actual requirements.

Catalyst is particularly suitable for.

  • Office buildings
  • Schools
  • Universities
  • Branch networks
  • Traditional corporate networks
  • Wi-Fi and VoIP infrastructures

Nexus is particularly suitable for:

  • Data centres
  • Cloud providers
  • AI workloads
  • Virtualisation
  • Large databases
  • Storage networks
  • High-performance servers

Organisations with mixed infrastructures often use both product families in parallel. Whilst Catalyst serves the campus environment, Nexus handles communication within the data centre.



An overview of the key Catalyst models

The Cisco Catalyst product family comprises various switch series designed to meet a wide range of business requirements. The following overview highlights the key models and their typical applications.

Cisco Catalyst 9200: The reliable entry-level solution for enterprise networks

The Cisco Catalyst 9200 Series has been specifically designed for modern enterprise networks and provides a reliable, secure and high-performance foundation for day-to-day business operations.

Cisco Catalyst 9200 Switch

Advantages:

  • Layer 2 and Layer 3 functions for flexible network designs
  • Support for Power over Ethernet (PoE+)
  • High security standards with Cisco DNA, TrustSec, IEEE 802.1X, ACLs, DHCP snooping and MACsec encryption
  • StackWise for connecting up to eight switches into a single logical unit

Applications:

The Cisco Catalyst 9200 switches are ideal for access networks in small and medium-sized enterprises. They reliably connect workstations, IP telephones, printers and Wi-Fi access points, ensuring stable network communication. They are frequently used in schools, public sector organisations and branch offices due to their high reliability and ease of management.



Cisco Catalyst 9300: The standard for modern enterprise networks

The Cisco Catalyst 9300 Series is one of the most widely used enterprise switches and forms the heart of many modern corporate networks.

Cisco Catalyst 9300 Switch

Advantages:

  • High performance with multi-gigabit Ethernet
  • Support for Cisco SD-Access
  • Comprehensive security and automation features
  • StackWise connections with model-dependent bandwidth of up to 1 Tbit/s

Applications:

The Cisco Catalyst 9300 switches are predominantly used in medium-sized and large enterprises. They are particularly well suited to campus networks with a large number of end devices, as well as to Wi-Fi, VoIP and IoT infrastructures.

“Whether and how many switches can be stacked depends on the specific model for the Catalyst 9200 and 9300. One key difference lies in the stack bandwidth: the C9200L uses StackWise-80, whilst the C9300X uses StackWise-1T. Where there are many multi-gigabit ports or high uplink traffic, the stack bandwidth is therefore an important selection criterion.” - Michael Assert, Team Lead IT Technician



Cisco Catalyst 9500: High-performance core switch for large enterprise networks

The Cisco Catalyst 9500 Series has been developed for use in the core and distribution layers of large enterprise networks.

Cisco Catalyst 9500 Switch

Advantages:

  • Support for bandwidths of up to 100 GbE, depending on the model
  • High performance and scalability for the core and distribution layers
  • Advanced routing and core functions
  • Redundant architecture for high availability
  • Security features, the scope of which depends on the model, IOS-XE version and licensing

Applications:

Cisco Catalyst 9500 switches are primarily used in large enterprise networks and campus infrastructures. Organisations with multiple sites or a large number of end devices benefit in particular from the high scalability and reliability of the Catalyst 9500 series.



An overview of the key Nexus models

Within the Nexus family, Cisco offers several series that differ in terms of design and intended use.

Cisco Nexus 3000: For environments requiring extremely low latency

The Cisco Nexus 3000 Series delivers high speed with minimal delay. It is particularly well suited to applications where every microsecond counts, such as in the financial sector or for real-time analytics. Their low latency and flexible port options make the Nexus 3000 switches a future-proof foundation for demanding enterprise networks.

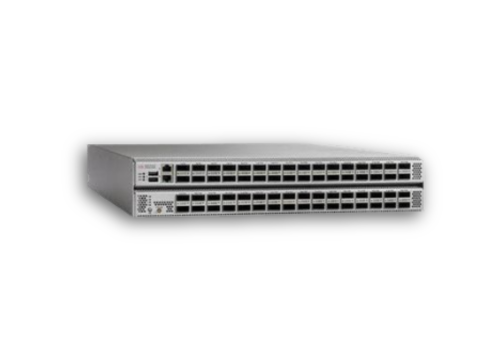

Cisco Nexus 3000 Switch

Advantages:

  • Speeds of up to 400 GbE
  • High-performance Layer 2 and Layer 3 functions
  • Support for OpenFlow, VXLAN and PTP
  • Ideal for software-defined networking

Applications:

The Cisco Nexus 3000 switches are particularly well-suited where performance needs to go hand in hand with network stability. They can be deployed in both the core and spine layers, making them a high-performance component in data centre architectures. These switches are ideal for connecting high-performance servers in virtualised environments.

Cisco Nexus 3000 switches are the right choice, particularly in financial and research institutions where low latency is crucial.



Cisco Nexus 7000: The backbone of large networks

The Cisco Nexus 7000 Series forms the heart of many enterprise data centres. It has a modular design and is built for 24/7 operation. Redundant components ensure maximum reliability. The series combines scalability, high availability and comprehensive Layer 2 and Layer 3 features in a future-proof architecture. Supported by the powerful Cisco NX-OS operating system, it enables secure, efficient and centralised network management.

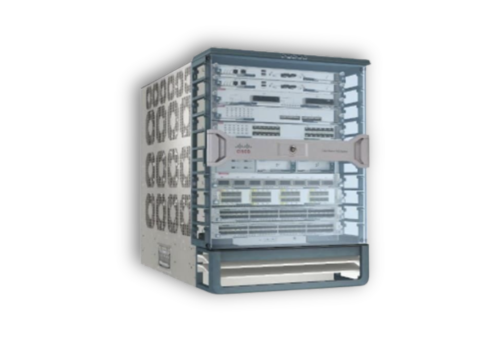

Cisco Nexus 7000 Switch

Advantages:

  • Modular design for customisable port and feature configurations
  • Support for 1 GbE, 10 GbE, 40 GbE and 100 GbE
  • High reliability thanks to redundant components
  • Unified management with Cisco NX-OS

Applications:

Typically, the Cisco Nexus 7000 Series is primarily used in the core and aggregation layers of large enterprise networks. It is also suitable for virtualised data centre architectures. It is characterised by high availability and can therefore be deployed in the backbone of a network.



Cisco Nexus 9000: Future-proof solution for modern data centres

The Cisco Nexus 9000 Series is the most advanced line in the product family. It combines traditional networking technology with software-defined infrastructure and can be operated using either NX-OS or Cisco ACI.

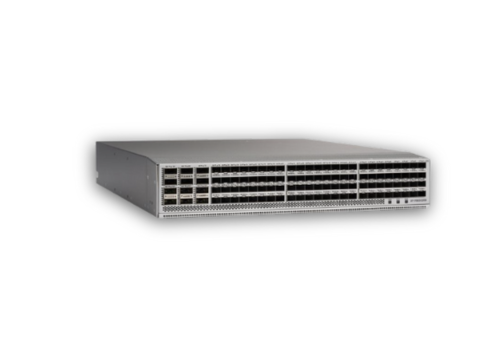

Cisco Nexus 9000 Switch

Advantages:

  • Bandwidths from 1 to 400 Gbit/s
  • Automation via Cisco ACI (Application Centric Infrastructure)
  • Advanced telemetry and security features
  • High energy efficiency

Applications:

The Cisco Nexus 9000 Series is ideally suited to cloud environments, hybrid data centres and AI-powered networks. Organisations with extremely high data throughput in particular can rely on the 9000 Series to deliver the lowest possible latency. Financial, research and media organisations can expect the highest levels of performance.

“With the Nexus 9000, the operating mode should be determined at an early stage. In NX-OS mode, for example, the fabric is configured in the traditional way using VXLAN and BGP EVPN, whilst in ACI mode, the APIC handles centralised, policy-based management. Not every model supports both modes. That is why hardware compatibility, software version and licensing should be included on the checklist before procurement.” - Michael Assert, Team Lead IT Technician



Cisco Catalyst vs. Nexus: A direct comparison of the key series

SeriesTypical useMax. port speedSpecial features
Catalyst 9200Access networksup to 10 GbEPoE, security, SMEs
Catalyst 9300Campus networksup to 100 GbESD-Access, multi-gigabit
Catalyst 9500Campus coreup to 100 GbEHigh performance, redundancy
Nexus 3000High-performance data centreup to 400 GbEVery low latency
Nexus 7000Data centre coreup to 100 GbEModular, high availability
Nexus 9000Cloud and hybrid data centresup to 400 GbECisco ACI, automation



Conclusion: Cisco Nexus vs. Catalyst

Cisco Catalyst switches are the ideal choice for traditional enterprise and campus networks, whilst Cisco Nexus has been specifically designed for data centres, cloud infrastructures and virtualised environments.

Organisations with modern data centre architectures benefit from the high performance, scalability and automation of the Nexus series.

In many organisations, the two product families even complement each other perfectly: Catalyst handles the network infrastructure on campus, whilst Nexus forms the high-performance backbone of the data centre.

“Nexus and Catalyst do not have to be an either/or decision. In many environments, Catalyst handles the connection of end devices, whilst Nexus processes data traffic in the data centre. This allows each series to be used for the purpose for which it was designed.” - Michael Assert, Team Lead IT Technician



Your partner for Cisco switches

At it-market.com, you’ll find a wide selection of Cisco switches, including the complete Nexus and Catalyst ranges. Our certified technicians thoroughly inspect every device and refurbish it to a professional standard. You benefit from up to 3 years’ warranty for B2B customers on new and refurbished goods.

Are you looking to expand or modernise your network? Our team will be happy to provide you with personalised, expert advice.



FAQ: Frequently Asked Questions about Cisco Switches

What is the difference between Cisco Nexus and Cisco Catalyst?
Cisco Catalyst switches were developed for traditional enterprise and campus networks. Cisco Nexus switches are mainly used in data centres and offer higher bandwidths, lower latency, and features for virtualisation and cloud infrastructures.

When should I use Cisco Nexus instead of Catalyst?
Cisco Nexus is recommended for data centres, cloud environments and virtualised infrastructures with high demands on performance, scalability and availability. For traditional office and campus networks, Cisco Catalyst is often sufficient.

Can Cisco Catalyst and Nexus be used together?
Yes. Many organisations combine both product families. Catalyst serves workstation networks and end devices, whilst Nexus handles the data centre and server communications.

Which operating system do Cisco Catalyst and Nexus use?
Cisco Catalyst primarily runs on Cisco IOS XE, whilst Cisco Nexus uses the Cisco NX-OS operating system, which was developed specifically for data centres.

Are Cisco Nexus switches suitable for small businesses?
For small businesses without their own data centre, Cisco Catalyst switches are often the more cost-effective choice. Cisco Nexus is particularly worthwhile where there are high demands on virtualisation, cloud applications and data throughput.
